Tactile Data

# Tactile matrix
sub = glove.tactile().subscribe()
frame = await sub.recv_async()
print(f"Max pressure: {max(frame.data):.2f}")

# Zone data
sub = glove.tactile_zones().subscribe()
zones = await sub.recv_async()
print(f"Palm: {zones.palm}, Thumb: {zones.thumb}")

Tactile Matrix Layout

Tactile data comes from a 24×31 piezoresistive sensor matrix, 744 positions in total, of which 526 are active taxels. TactileFrame, TactileBinary, and TactileResidual all use this layout, in 24×31 row-major order. Access row r, column c: data[r * 31 + c] (r is 0–23, c is 0–30).

The figure below marks where each column index (left) and row index (right) sits on the physical glove, letting you map a matrix index (or a point's order in the exported point cloud) to a specific location on the glove.

Layout Change

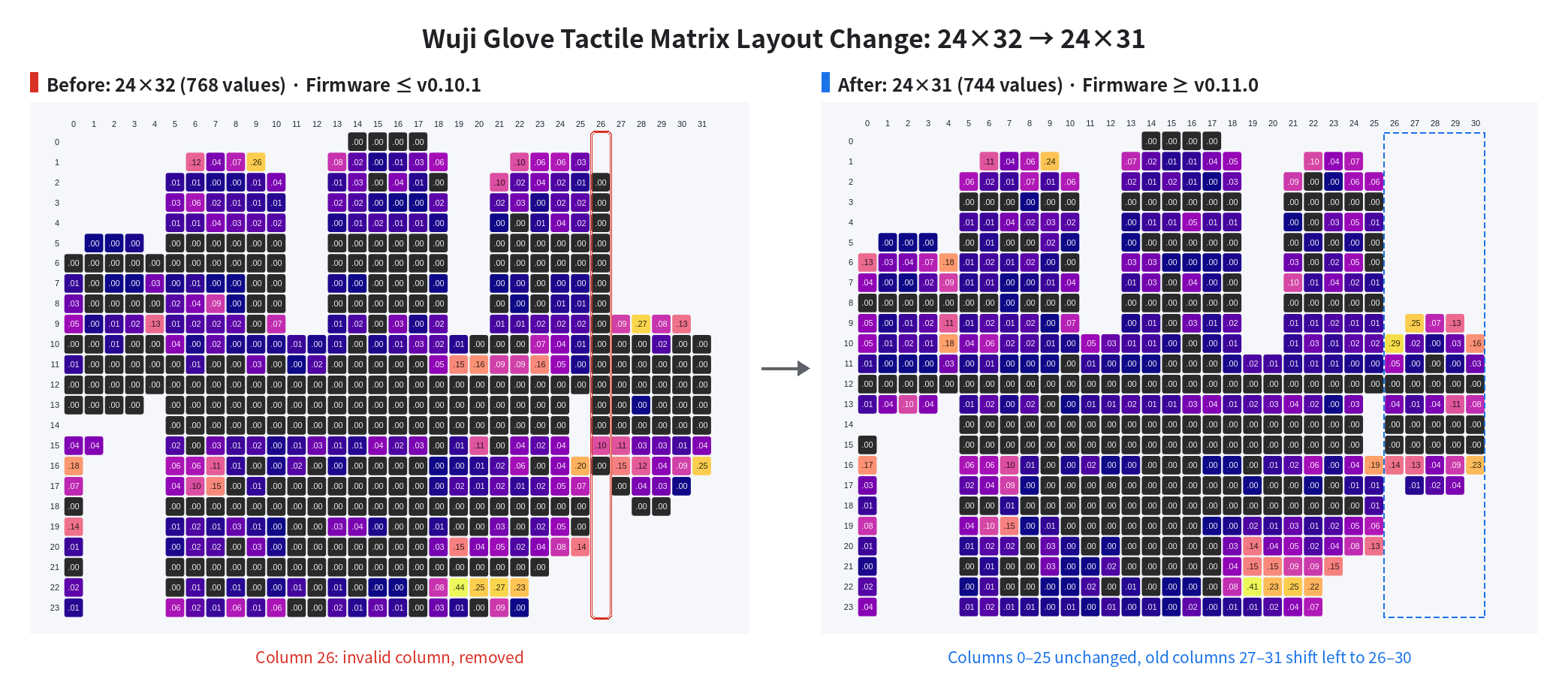

Starting with firmware v0.11.0, the tactile matrix changes from 24×32 (768 values) to 24×31 (744 values), removing invalid column 26 from the 24×32 layout. The remaining columns keep their relative order: columns 0–25 keep their indices, and columns 27–31 shift left to become columns 26–30.

TactileFrame

Calibrated tactile matrix data. Frame rate: 120 FPS.

data is an array of 744 values in 24×31 row-major order. Access row r, column c: data[r * 31 + c]. Invalid positions are fixed at -1.0, which distinguishes them from an active taxel reading zero pressure (0.0).

{
  "header": {
    "seq": 42,
    "timestamp_us": 1709876543210,
    "frame_id": ""
  },
  "data": [-1.0, 0.12, 0.45, 0.78, -1.0, 0.33, ...] // 744 values total, 526 active, invalid taxels are -1.0
}

TactileZones

Tactile data aggregated by finger region. Each region is a rectangle in row-major order. Positions inside the rectangle that belong to the region carry a pressure value, and the rest are fixed at -1.0.

Active taxels across the six regions total 526, the same mask as TactileFrame. Array length is the rectangle's cell count — index within it to stay in bounds.

{
  "header": {
    "seq": 42,
    "timestamp_us": 1709876543210,
    "frame_id": ""
  },
  "palm": [0.0, 0.12, 0.45, ...],  // 308 values, 288 of them active taxels
  // For each finger's array length and active taxel count, see the table above
  "thumb": [0.0, 0.85, 0.92, ...],
  "index": [0.0, 0.67, 0.23, ...],
  "middle": [0.0, 0.34, ...],
  "ring": [0.0, 0.11, ...],
  "pinky": [0.0, 0.05, ...]
}

PointField

Point cloud field descriptor.

PointCloud

Tactile point cloud data: each frame gives the 3D position and pressure of the 526 active taxels on the glove. Positions come from linear blend skinning over the hand skeleton, in the l_wrist or r_wrist frame. Beyond x / y / z, each point also carries pressure (normalized to 0.0–1.0), so you can color the 3D view by force.

The byte layout is self-describing, in the style of ROS sensor_msgs/PointCloud2: data is a flat byte stream, point_stride is the byte count per point, and fields describes the per-point fields (name, byte offset, type). The current implementation has 4 fields and 16 bytes per point, so data is point_count × 16 bytes packed point by point. Adding a new per-point field only means appending one entry to fields — the PointCloud message definition itself stays unchanged.

       ┌─────── point 0 (16 bytes) ────┐┌─────── point 1 (16 bytes) ────┐
data = │ x0 (4B) y0 (4B) z0 (4B) p0 4B ││ x1 (4B) y1 (4B) z1 (4B) p1 4B │ ...
       └───────────────────────────────┘└───────────────────────────────┘
       offset 0                          offset 16                       offset 32

Slice back to per-point values:

start of point i      = i × point_stride
point i's x           = float32(data[start + 0  : start + 4])
point i's y           = float32(data[start + 4  : start + 8])
point i's z           = float32(data[start + 8  : start + 12])
point i's pressure    = float32(data[start + 12 : start + 16])

{
  "header": {
    "seq": 42,
    "timestamp_us": 1709876543210,
    "frame_id": "l_wrist"
  },
  "frame_id": "l_wrist",
  "point_stride": 16,
  "fields": [
    { "name": "x",        "offset": 0,  "type": 7 },
    { "name": "y",        "offset": 4,  "type": 7 },
    { "name": "z",        "offset": 8,  "type": 7 },
    { "name": "pressure", "offset": 12, "type": 7 }
  ],
  "data": [0, 0, 128, 63, ...] // raw byte stream, 16 bytes per point (4 fields × 4 bytes)
}

Unpack the point cloud by field layout:

import struct

# Current layout: x, y, z, pressure are all float32, 16 bytes per point
raw = bytes(cloud.data)
for i in range(cloud.point_count()):
    x, y, z, pressure = struct.unpack_from('<ffff', raw, i * cloud.point_stride)

TactileBinary

Binary contact detection inferred from tactile data. Frame rate: 120 FPS, published at the same rate as glove.tactile().

data is laid out in 24×31 row-major order, with the same shape and mask as TactileFrame (526 active points). Access row r, column c: data[r * 31 + c]. Existing tactile-grid visualizers work unchanged.

Train a Contact Model

Train once, and the model is saved per SDK user and glove serial number (see tactile data paths) and loaded automatically when you subscribe—no path to configure. There are two training entries:

• Wuji Studio: Follow the guided flow in Wuji Studio tactile contact calibration.
• SDK calibration API: await glove.calibrate_tactile() (or the blocking glove.calibrate_tactile_blocking()) records a few prompted hand motions, then trains and installs the model automatically. After each recording you can keep it, re-record it, or stop—pass an on_pose_prompt callback for interactive control, or omit it for a hands-off run. For complete usage, see the examples 7.tactile_calibration.py (Python) and 4_tactile_calibration.c (C—API details in C API Reference).

Move a Model to Another Computer

The recommended way is Export and Import Data. For a manual move, two requirements must be met:

• Copy all three model files: contact.safetensors, contact.npz, and contact.json (see Calibration Output Location). contact.json is the model's commit marker — without it the model doesn't load.
• Put them into the paths["dir"] directory that manager.tactile_model_paths(user_id, sn) returns.

The SDK hot-reloads when you switch SDK users or retrain the model.

from wuji_sdk import SdkManager

# Look up the model directory for this user and glove (Wuji Studio writes it for you)
manager = SdkManager.instance()
user_id = manager.current_user()["user_id"]
paths = manager.tactile_model_paths(user_id, "WujiGlove-12345")
print(paths["dir"])  # place contact.safetensors, contact.npz, and contact.json here

sub = glove.tactile_binary().subscribe()
frame = await sub.recv_async()
contacts = sum(1 for v in frame.data if v == 1.0)
print(f"Active contacts: {contacts}")

{
  "header": {
    "seq": 42,
    "timestamp_us": 1709876543210,
    "frame_id": ""
  },
  "data": [-1.0, 0.0, 1.0, 1.0, -1.0, 0.0, ...] // 744 values total, 526 active
}

TactileResidual

Per-taxel signed contact residual inferred from tactile data. Frame rate: 120 FPS, published at the same rate as glove.tactile().

data is laid out in 24×31 row-major order, with the same shape and mask as TactileFrame (526 active points). Access row r, column c: data[r * 31 + c].

The residual signal is not smoothed, normalized, or binarized — pick a threshold and post-process it yourself. It shares the same contact model as TactileBinary. Subscribing to both runs model inference only once.

tactile_residual and tactile_binary share one model directory, and it loads automatically from the current SDK user and glove serial number. For the training entries and how to move models across computers, see TactileBinary. The SDK hot-reloads when you switch SDK users or retrain the model.

from wuji_sdk import SdkManager

# Look up the model directory for this user and glove (Wuji Studio writes it for you)
manager = SdkManager.instance()
user_id = manager.current_user()["user_id"]
paths = manager.tactile_model_paths(user_id, "WujiGlove-12345")
print(paths["dir"])  # place contact.safetensors, contact.npz, and contact.json here

sub = glove.tactile_residual().subscribe()
frame = await sub.recv_async()
valid = [v for v in frame.data if v != -1.0]
print(f"Residual range: [{min(valid):.2f}, {max(valid):.2f}]")

{
  "header": {
    "seq": 42,
    "timestamp_us": 1709876543210,
    "frame_id": ""
  },
  "data": [-1.0, 0.05, 1.23, 0.87, -1.0, -0.02, ...] // 744 values total, 526 active
}
